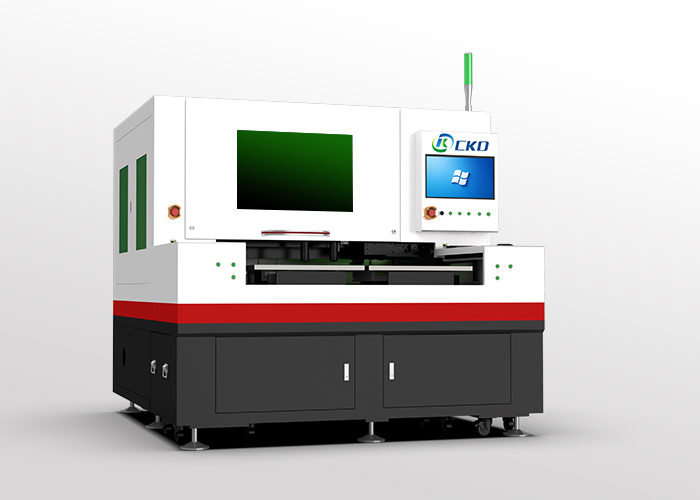

Product Description:
This high-efficiency laser cutting device is designed for glass processing. It uses a high-energy laser beam for shape-oriented cutting and CO₂ laser-assisted splitting to achieve precise separation. Featuring ±0.01 mm cutting accuracy, ≤ 5 μm edge chipping, non-contact operation, no mechanical stress, and low thermal impact, it produces smooth, burr-free surfaces that are ready to use—suitable for various glass cutting applications.
Technical Parameters:
| Dimension |
2150mm × 2080mm × 1960mm / 2550mm × 2080mm × 1960mm |
| Working Frequency |
50HZ/60HZ |
| Drive Motor |
XY Linear Motor + Optical Grating Scale |
| Cutting Precision |
±0.01mm |
| Cutting Width |
0.03-25mm |
| Splitting Laser Source Cooling Method |
Water Cooling |
| Wavelength |
1064nm |
| Cutting Thickness |
0.03~25mm |
| Positioning Accuracy |
±2μm |
| Supported Image and Text Formats |
AI, PLT, DXF, BMP, Dst, DWG, LAS, DXP |

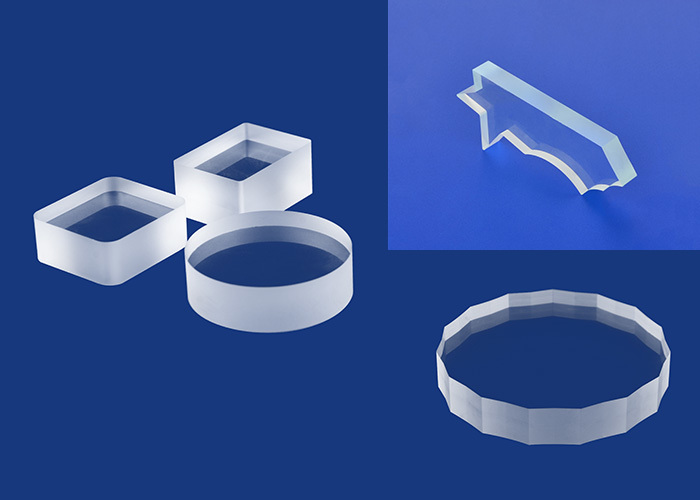

Samlpe:
Can process "ultra-clear glass, regular white glass, high boron silicate glass, quartz stone glass", etc., mobile phone cover, car glass cover, camera glass cover, etc., mobile phone sapphire cover, camera sapphire cover, sapphire light strip, K9 glass, filter film cutting, reflector cutting, etc. Optical glass.
Introduction to the company:
Shenzhen CKD Precision Mechanical & Electrical Co., Ltd. was established in 2010. lt is a Ultrafast laser equipment manufacturer and automation new intelligent manufacturing solution provider that integrates R&D, production, sales, and service. After more than ten years of deep cultivation and accumulation, the company has accumulated more than 70 patents, passed CE certification,1S09001 quality management system certification, and Intellectual Property Management System Certification. lt is a national high-tech enterprise and a Shenzhen Professional, Refined, Special, and Innovation Enterprise.
The company has a sheet metal workshop, machining workshop, assembly workshop, and process development and debugging workshop, covering R&D, Production, Testing, Sale & after service.
Up to now, the company has strong R&D team that has been engaged in laser structural design and laser application technology for many years. With a strong R&D ability and core software technology, the company has achieved innovation and break-through in product technology in fields such as ultra fast laser cutting, laser drilling, TFT-LCD screen laser repair, semiconductor plastic sealing and debonding, diamond grinding, laser welding, and laser marking. Especially in the processing of hard and brittle materials such as glass and ceramics, TFT-LCD repair, semiconductor plastic sealing and debonding, as well as diamond grinding and other automated new intelligent manufacturing, we provide cus- tomers with low-cost, high-quality, and high-efficiency solutions,making contributions to customer with value-added,innovation,and development.
Packing and Shipping:
Product Packaging:
The Laser Glass Cutting Machine is carefully packed to ensure safe delivery. It is first wrapped with protective foam and bubble wrap to prevent any damage during transit. The machine is then placed inside a sturdy wooden crate or reinforced cardboard box, depending on the shipping requirements. All accessories and components are securely packed in separate compartments or boxes within the main packaging. Clear labeling and handling instructions are affixed to the exterior to guide safe handling.
Shipping:
We offer worldwide shipping for the Laser Glass Cutting Machine through reliable freight carriers. Shipping options include air freight, sea freight, and express courier services, depending on your urgency and budget. Each shipment is accompanied by all necessary documentation, including a packing list, invoice, and certificate of origin. We ensure that the machine is insured during transit for your peace of mind. Our logistics team coordinates closely with the carrier to track the shipment and provide timely updates until delivery is completed.
