Product Description:

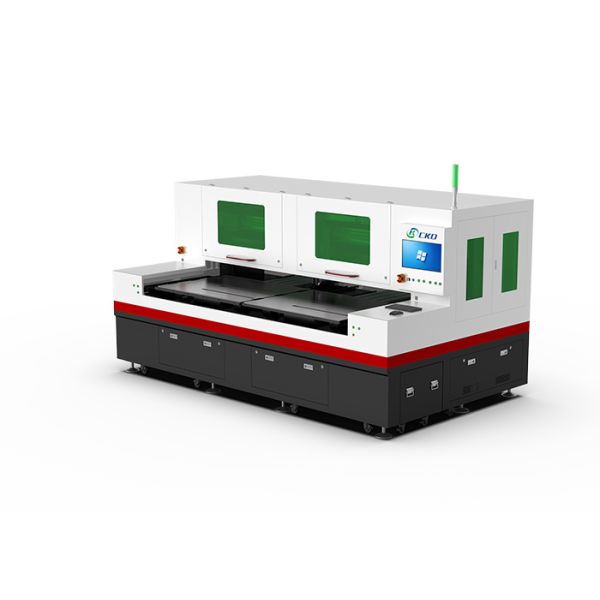

This device is an efficient cutting device that uses high-energy lasers to cut glass. The cutting is aimed at shape processing and CO2 laser assisted splitting is used to achieve glass cutting and splitting. Laser instant focusing, precise energy release, CCD visual positioning, one-time shaping of circular, square, complex patterns, etc. Non contact cutting, no mechanical stress, smooth and delicate edges, no broken edges, no cracks.
Technical Parameters:
| Energy Consumption |
Standby Power Is About 500W, And Average Power Consumption During Cutting Is 2.5kW. Energy-efficient With Eco-friendly Modes. |
| Working Environment |
26℃ |
| Acceleration |
1G |
| Environmental Conditions |
Works Best In Temperatures Between 15°C And 30°C, With 20%-80% Relative Humidity, Suitable For Cleanrooms Or Industrial Environments |
| Cutting Speed |
Adjustable From 0-500mm/s |
| Noise Level |
Operating Noise Level Is 70dB, With A Built-in Silencing System, Suitable For Low-noise Environments. |
| Whether CNC |
Yes |
| Dimension |
2150mm × 2080mm × 1960mm / 2550mm × 2080mm × 1960mm |
| Supported Image and Text Formats |
AI, PLT, DXF, BMP, Dst, DWg, LAS, DXP |
| Splitting Laser Source Power |
150W (options: 250W/350W) |
Applications:

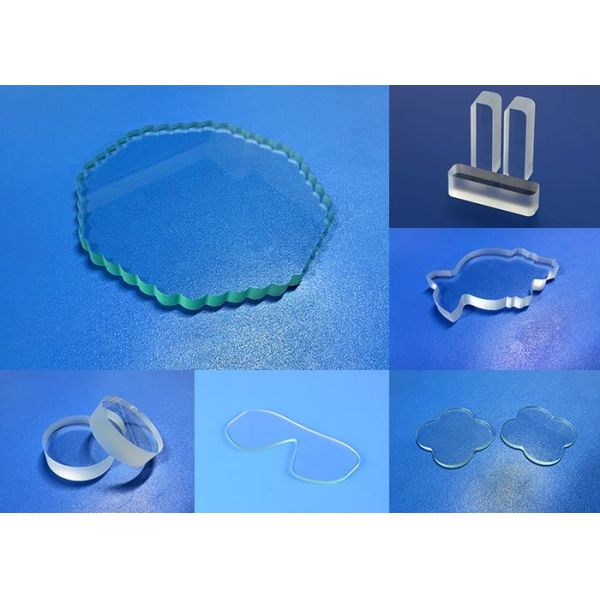

Can process "ultra-clear glass, regular white glass, high boron silicate glass, quartz stone glass", etc., mobile phone cover, car glass cover, camera glass cover, etc., mobile phone sapphire cover, camera sapphire cover, sapphire light strip, K9 glass, filter film cutting, reflector cutting, etc. Optical glass.
Introduction to the company:
Shenzhen CKD Precision Mechanical & Electrical Co., Ltd. was established in 2010. lt is a Ultrafast laser equipment manufacturer and automation new intelligent manufacturing solution provider that integrates R&D, production, sales, and service. After more than ten years of deep cultivation and accumulation, the company has accumulated more than 70 patents, passed CE certification,1S09001 quality management system certification, and Intellectual Property Management System Certification. lt is a national high-tech enterprise and a Shenzhen Professional, Refined, Special, and Innovation Enterprise.
The company has a sheet metal workshop, machining workshop, assembly workshop, and process development and debugging workshop, covering R&D, Production, Testing, Sale & after service.
Up to now, the company has strong R&D team that has been engaged in laser structural design and laser application technology for many years. With a strong R&D ability and core software technology, the company has achieved innovation and break-through in product technology in fields such as ultra fast laser cutting, laser drilling, TFT-LCD screen laser repair, semiconductor plastic sealing and debonding, diamond grinding, laser welding, and laser marking. Especially in the processing of hard and brittle materials such as glass and ceramics, TFT-LCD repair, semiconductor plastic sealing and debonding, as well as diamond grinding and other automated new intelligent manufacturing, we provide cus- tomers with low-cost, high-quality, and high-efficiency solutions,making contributions to customer with value-added,innovation,and development.
Packing and Shipping:
Product Packaging:
The Laser Glass Cutting Machine is carefully packaged to ensure it arrives safely and in perfect condition. Each unit is securely wrapped with protective materials including foam padding and bubble wrap to prevent any damage during transit. The machine is placed inside a sturdy, custom-designed wooden crate that provides additional protection against shocks and vibrations. All accessories, manuals, and cables are packed separately in labeled compartments within the crate for easy identification and access. The packaging is clearly marked with handling instructions such as "Fragile" and "Handle with Care" to ensure careful transportation.
Shipping:
We offer reliable shipping options to deliver the Laser Glass Cutting Machine worldwide. The product is shipped via trusted freight carriers that specialize in handling heavy and delicate equipment. Prior to shipping, the machine undergoes thorough inspection and testing to guarantee quality. Customers will receive tracking information once the order has been dispatched, allowing them to monitor the shipment’s progress in real-time. We also provide assistance with customs documentation and import regulations to ensure smooth delivery. Delivery times may vary depending on the destination, but we strive to dispatch all orders promptly to minimize waiting periods.
