Product Description:

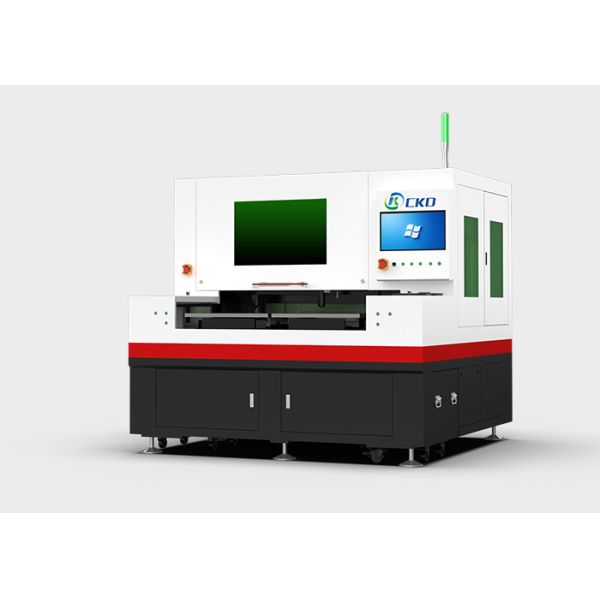

This high‑energy laser cutting device is designed for efficient glass processing. It employs CO₂ laser‑assisted splitting to achieve precise shape cutting and separation. Suitable for a wide range of brittle glasses, the non‑contact laser beam eliminates mechanical stress during operation. The system supports irregular high‑speed cutting with an exceptional accuracy of ±0.01 mm and edge chipping ≤5 μm. Combining high precision, low damage, and high production efficiency, this laser glass cutter has become a key process technology in optics, electronics, and healthcare.
Features:
- Product Name: Laser Glass Cutting Machine
- Model: Glass Cutting And Splitting Machine (All-in-One)
- Laser Source Wavelength: 10.6µm
- Impulse Frequency: 1-100kHz
- Cutting Width Range: 0.03-25mm
- Customizable Options Available:
- Table Size
- Laser Power (up to 500W)
- Special Cutting Heads (for curved or micro-level cutting)
- Ideal for Irregular Glass Cutting
- Functions as a Stained Glass Cutting Machine
- Compact and Efficient Small Glass Laser Cutting Machine
Technical Parameters:
| Minimum Cutting Burr |
≤5μm |
| Splitting Laser Source Laser Type |
RFC02 (Radio Frequency CO2) |
| Acceleration |
1G |
| Splitting Laser Source Cooling Method |
Water Cooling |
| Key Selling Points |
Ultra Fast Picosecond |
| Splitting Laser Source Pulse Frequency |
1-100kHz |
| Linear Speed |
Up To 1000mm/s |
| Beam Quality |
M² < 1.2 |
| Splitting Laser Source Wavelength |
10.6µm |
| Pulse Frequency |
1Hz - 1000kHz |
Applications:

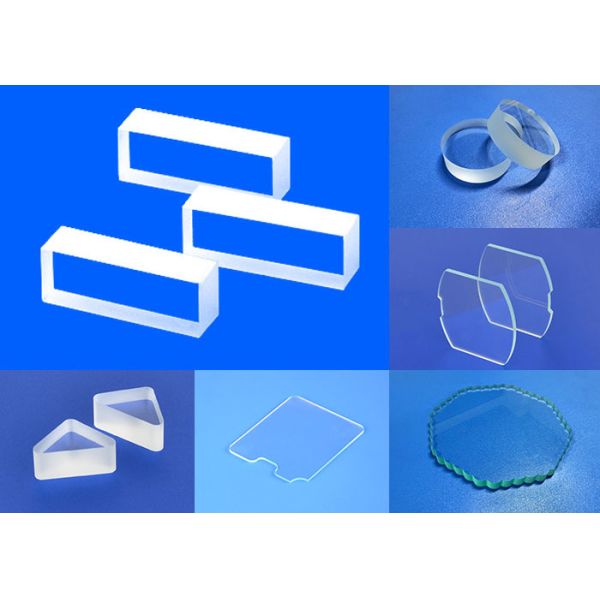

Can process "ultra-clear glass, regular white glass, high boron silicate glass, quartz stone glass", etc., mobile phone cover, car glass cover, camera glass cover, etc., mobile phone sapphire cover, camera sapphire cover, sapphire light strip, K9 glass, filter film cutting, reflector cutting, etc. Optical glass.
Introduction to the company:
Shenzhen CKD Precision Mechanical & Electrical Co., Ltd. was established in 2010. lt is a Ultrafast laser equipment manufacturer and automation new intelligent manufacturing solution provider that integrates R&D, production, sales, and service. After more than ten years of deep cultivation and accumulation, the company has accumulated more than 70 patents, passed CE certification,1S09001 quality management system certification, and Intellectual Property Management System Certification. lt is a national high-tech enterprise and a Shenzhen Professional, Refined, Special, and Innovation Enterprise.
The company has a sheet metal workshop, machining workshop, assembly workshop, and process development and debugging workshop, covering R&D, Production, Testing, Sale & after service.
Up to now, the company has strong R&D team that has been engaged in laser structural design and laser application technology for many years. With a strong R&D ability and core software technology, the company has achieved innovation and break-through in product technology in fields such as ultra fast laser cutting, laser drilling, TFT-LCD screen laser repair, semiconductor plastic sealing and debonding, diamond grinding, laser welding, and laser marking. Especially in the processing of hard and brittle materials such as glass and ceramics, TFT-LCD repair, semiconductor plastic sealing and debonding, as well as diamond grinding and other automated new intelligent manufacturing, we provide cus- tomers with low-cost, high-quality, and high-efficiency solutions,making contributions to customer with value-added,innovation,and development.
Packing and Shipping:
Product Packaging:
The Laser Glass Cutting Machine is carefully packaged to ensure safe delivery and protection during transit. It is wrapped with high-quality foam padding and placed inside a sturdy wooden crate to prevent any damage. All fragile components are securely fixed and cushioned. The packaging is labeled with handling instructions such as "Fragile" and "Handle with Care" to alert shipping personnel.
Shipping:
We offer worldwide shipping for the Laser Glass Cutting Machine. The product is shipped via reliable freight carriers with tracking available for every shipment. Depending on the destination, shipping options include sea freight, air freight, or express courier services. We ensure all customs documentation and export requirements are handled professionally for smooth delivery. Delivery times vary based on location and shipping method chosen.
