Product Description:

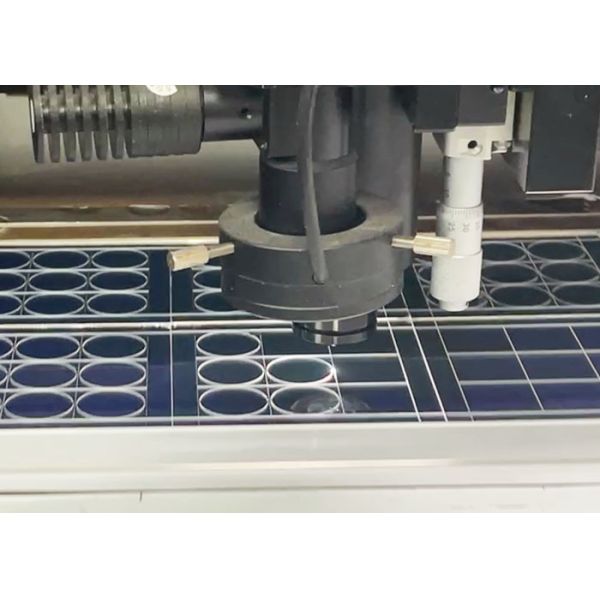

This efficient cutting device uses high-energy lasers to cut glass, specifically for shape processing. It employs CO₂ laser-assisted splitting to achieve glass cutting and separation. Adopting ultrafast laser glass cutting technology, the device instantly focuses the laser, releases energy stably, and precisely controls the cutting path. The resulting cutting edge is clean and smooth, free from chipping or cracks. The cutting accuracy is ±0.01 mm, and the edge chipping is ≤5 μm.
Features:
- Product Name: Laser Glass Cutting Machine
- Applicable Materials: Ultra Clear Glass, Plain White Glass, High Borosilicate Glass, Quartz Glass, Optical Glass, Cover Glass, Camera Glass Cover, Phone Glass Cover, Car Glass, LCD Screen, K9 Glass, Filter Cutting, Mirror Cutting, and more.
- Splitting Laser Source Power: 150W (optional 250W or 350W)
- Linear Guide Brand: TPI
- Cutting Width Range: 0.03-25mm
- Compatibility with Automation Systems: Supports integration with major automation systems including robot interfaces and automatic loading/unloading systems.
- Supports standard industrial communication protocols such as Modbus and OPC for seamless connectivity.
- Advanced optical glass Laser Cutting Machine technology ensures high precision and efficiency.
- Equipped with Fiber Laser Cutting Machine capabilities for superior cutting performance.
- Designed as a Fiber Laser Cutting Machine optimized for cutting various types of glass with high accuracy.
Technical Parameters:
| Product Name |
Glass Cutting And Splitting Machine (All-in-One) |
| Laser Source Power |
150W (Options: 250W / 350W) |
| Working Voltage |
220V |
| Safety Features |
Includes Emergency Stop Button, Protective Cover, Laser Safety Windows, And Automatic Power-off When The Cover Is Open For Safe Operation |
| Control System |
HTI Control |
| Warranty and Service |
2-year Warranty Covering Major Components Like The Laser Source And Control System; 24/7 Technical Support With Remote And On-site Service Options |
| Cutting Area |
400mm × 500mm / 600mm × 700mm / 600mm × 900mm |
| Environmental Conditions |
Optimal Temperature: 15°C - 30°C; Relative Humidity: 20%-80%; Suitable For Cleanrooms Or Industrial Environments |
| Cutting Precision |
±0.01mm |
| Acceleration |
1G |
Applications:

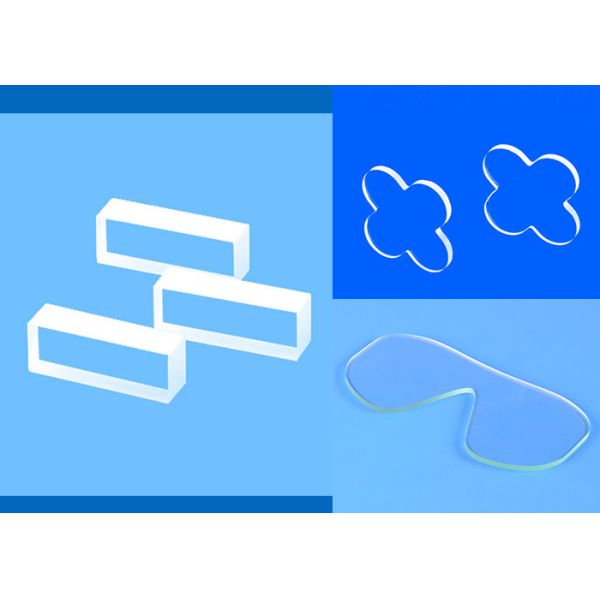

Can process "ultra-clear glass, regular white glass, high boron silicate glass, quartz stone glass", etc., mobile phone cover, car glass cover, camera glass cover, etc., mobile phone sapphire cover, camera sapphire cover, sapphire light strip, K9 glass, filter film cutting, reflector cutting, etc. Optical glass.
Introduction to the company:
Shenzhen CKD Precision Mechanical & Electrical Co., Ltd. was established in 2010. lt is a Ultrafast laser equipment manufacturer and automation new intelligent manufacturing solution provider that integrates R&D, production, sales, and service. After more than ten years of deep cultivation and accumulation, the company has accumulated more than 70 patents, passed CE certification,1S09001 quality management system certification, and Intellectual Property Management System Certification. lt is a national high-tech enterprise and a Shenzhen Professional, Refined, Special, and Innovation Enterprise.
The company has a sheet metal workshop, machining workshop, assembly workshop, and process development and debugging workshop, covering R&D, Production, Testing, Sale & after service.
Up to now, the company has strong R&D team that has been engaged in laser structural design and laser application technology for many years. With a strong R&D ability and core software technology, the company has achieved innovation and break-through in product technology in fields such as ultra fast laser cutting, laser drilling, TFT-LCD screen laser repair, semiconductor plastic sealing and debonding, diamond grinding, laser welding, and laser marking. Especially in the processing of hard and brittle materials such as glass and ceramics, TFT-LCD repair, semiconductor plastic sealing and debonding, as well as diamond grinding and other automated new intelligent manufacturing, we provide cus- tomers with low-cost, high-quality, and high-efficiency solutions,making contributions to customer with value-added,innovation,and development.
Packing and Shipping:
Product Packaging:
The Laser Glass Cutting Machine is securely packaged using high-quality, durable materials to ensure safe transportation. The machine is first wrapped with protective foam and plastic to prevent scratches and dust accumulation. It is then placed inside a custom-fitted wooden crate that provides robust protection against shocks and vibrations during transit. All fragile components are cushioned with additional padding, and the crate is clearly labeled with handling instructions and fragile warnings.
Shipping:
We offer worldwide shipping with reliable carriers to ensure timely and safe delivery of the Laser Glass Cutting Machine. The product is shipped via sea freight or air freight depending on the destination and customer preference. Tracking information will be provided once the shipment is dispatched. Our logistics team coordinates closely with shipping partners to handle customs clearance and ensure compliance with all import/export regulations. Customers can also opt for insured shipping for added security.
