Product Description:
This device is an efficient cutting device that uses high-energy lasers to cut glass. The cutting is aimed at shape processing and CO2 laser assisted splitting is used to achieve glass cutting and splitting. Alien cutting with one cut to shape—— ✔ contactless ✔ No thermal impact ✔ Accuracy ± 0.01mm! Laser cutting doubles efficiency and maximizes quality.
Features:

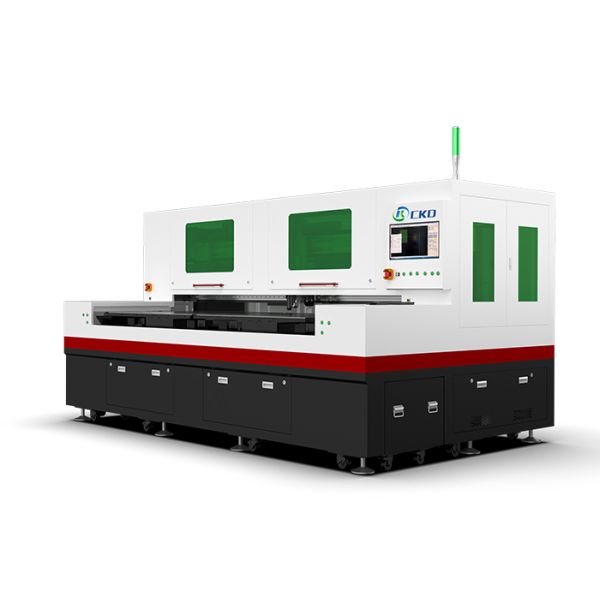

- Product Name: Laser Glass Cutting Machine
- Thick glass laser cutting machine, small glass laser cutting machine, and stained glass cutting machine capabilities
- Laser Source Power: 150W standard, with optional 250W and 350W power levels
- Laser Wavelength: 10.6µm for precise and efficient cutting
- Linear Guide Brand: TPI for smooth and accurate movement
- Maintenance Requirements:
- Recommend optical alignment every 200 hours
- Coolant replacement every 1000 hours
- Regular remote diagnostics and software updates available
- Warranty and Service:
- 2-year warranty covering major components like the laser source and control system
- 24/7 technical support with remote and on-site service options
Technical Parameters:
| Pulse Frequency |
1Hz - 1000kHz |
| Laser Type |
Infrared Picosecond |
| Beam Quality |
M² < 1.2 |
| Working Frequency |
50HZ/60HZ |
| Customizable Options |
Custom options available for table size, laser power (up to 500W), and special cutting heads (like for curved or micro-level cutting) to meet specific needs. |
| Advantages |
Irregular-shape high-speed cutting; high cutting quality, no taper, no burr, small chipping; high yield rate, low consumables and energy-saving; no pollution, no powder, and no wastewater. |
| Linear Guide Brand |
TPI |
| Splitting Laser Source Wavelength |
10.6µm |
| Cutting Area |
400mm*500mm / 600mm*700mm / 600mm*900mm |
| Splitting Laser Source Cooling Method |
Water Cooling |
Applications:

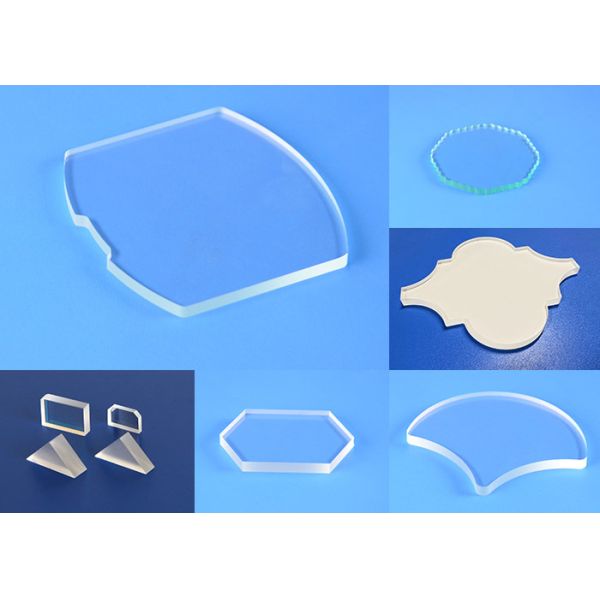

Can process "ultra-clear glass, regular white glass, high boron silicate glass, quartz stone glass", etc., mobile phone cover, car glass cover, camera glass cover, etc., mobile phone sapphire cover, camera sapphire cover, sapphire light strip, K9 glass, filter film cutting, reflector cutting, etc. Optical glass.
Introduction to the company:
Shenzhen CKD Precision Mechanical & Electrical Co., Ltd. was established in 2010. lt is a Ultrafast laser equipment manufacturer and automation new intelligent manufacturing solution provider that integrates R&D, production, sales, and service. After more than ten years of deep cultivation and accumulation, the company has accumulated more than 70 patents, passed CE certification,1S09001 quality management system certification, and Intellectual Property Management System Certification. lt is a national high-tech enterprise and a Shenzhen Professional, Refined, Special, and Innovation Enterprise.
The company has a sheet metal workshop, machining workshop, assembly workshop, and process development and debugging workshop, covering R&D, Production, Testing, Sale & after service.
Up to now, the company has strong R&D team that has been engaged in laser structural design and laser application technology for many years. With a strong R&D ability and core software technology, the company has achieved innovation and break-through in product technology in fields such as ultra fast laser cutting, laser drilling, TFT-LCD screen laser repair, semiconductor plastic sealing and debonding, diamond grinding, laser welding, and laser marking. Especially in the processing of hard and brittle materials such as glass and ceramics, TFT-LCD repair, semiconductor plastic sealing and debonding, as well as diamond grinding and other automated new intelligent manufacturing, we provide cus- tomers with low-cost, high-quality, and high-efficiency solutions,making contributions to customer with value-added,innovation,and development.
Packing and Shipping:
Product Packaging: The Laser Glass Cutting Machine is securely packaged using high-quality, durable materials to ensure safe transportation. Each unit is carefully wrapped with protective foam and enclosed in a sturdy wooden crate to prevent any damage during handling and shipping. All fragile components are cushioned and fixed firmly inside the packaging to avoid movement. Clear labeling and handling instructions are provided on the exterior of the package to ensure careful treatment throughout the shipping process.
Shipping: We offer reliable shipping options worldwide with tracking available for all orders. The Laser Glass Cutting Machine is shipped via reputable freight carriers experienced in handling delicate industrial equipment. Delivery times vary depending on the destination, and customers will receive timely updates regarding their shipment status. We also provide assistance with customs documentation and import regulations to facilitate smooth international delivery.
